Intelligent Eco-friendly Pole-Mounted Solid Insulated High-Voltage Ring Main Unit XGN116-12

Focus on high and low voltage transmission and distribution and related complete sets of products.

Key words:

Classification:

Power distribution cabinets

E-mail:

zbkydq@hotmail.com

Inquiry

Details

PRODUCTS DESCRIPTION
XGN116-12 Intelligent Eco-friendly Pole-Mounted Solid Insulated High-Voltage Ring Main Unit is a new generation of metal-enclosed switchgear that can be combined into multi-circuit in-and-out equipment with the functions of switching, connecting, and protecting the power system. It is suitable for power distribution systems in industrial and mining enterprises, residential areas, ports, and high-rise buildings. The solid-insulated ring main unit does not emit toxic substances, has no hidden dangers of gas leakage and high-temperature explosion, does not have the impact of gas leakage at low temperature and high altitude on insulation, and does not have the impact of condensation caused by humid water mist environment on insulation. It has high insulation performance, is safer, more environmentally friendly, has strong environmental adaptability, and is maintenance-free to ensure reliable operation.

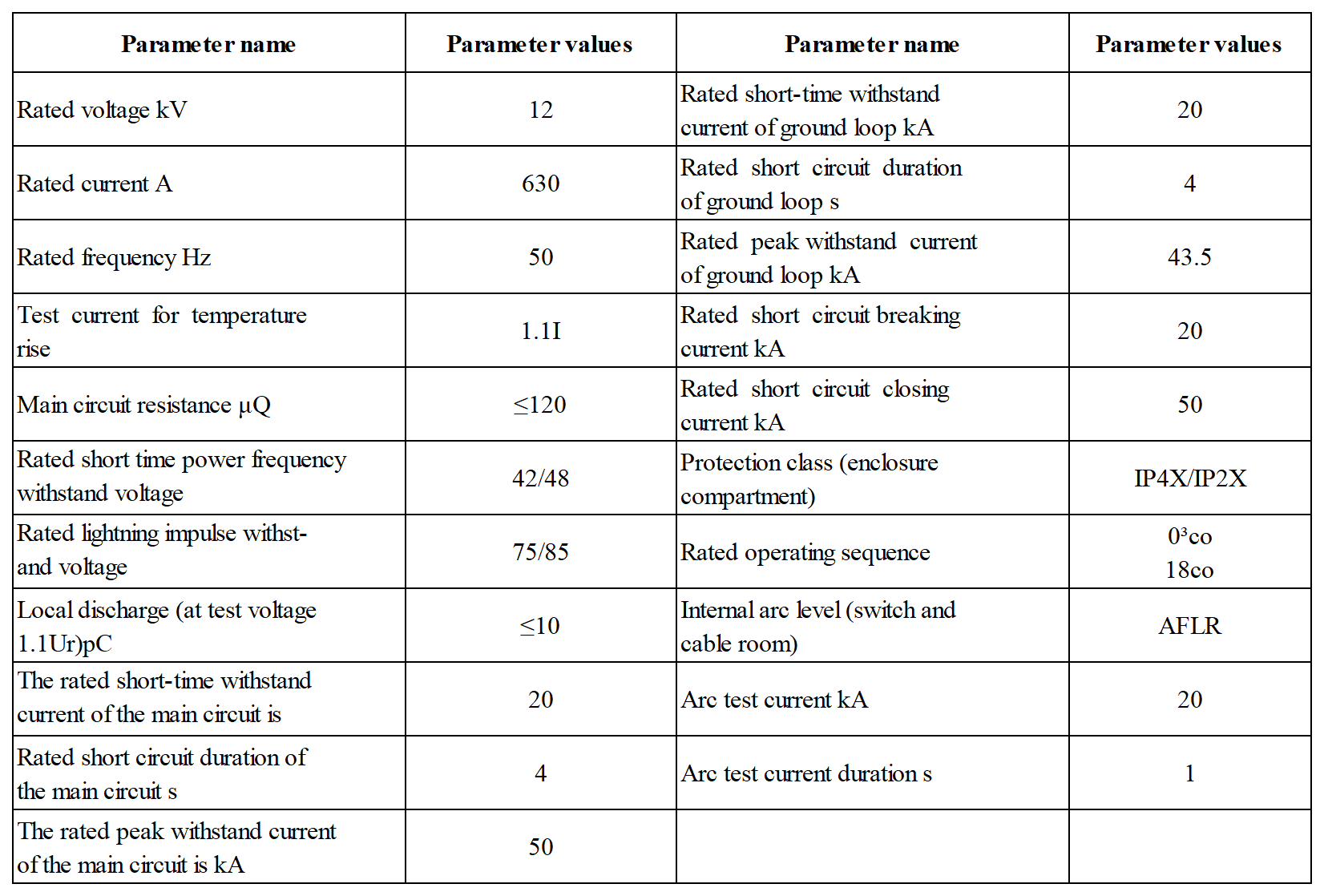

TECHNICAL DATA
PRODUCTION PROCESS

Switchgear Type

Classified by voltage level: High-voltage switchgear (used for 1kV and above voltage levels) and low-voltage switchgear (used for below 1kV voltage levels).

Classified by Applications: Incoming switchgear, outgoing switchgear, metering switchgear, capacitor compensation switchgear, etc. Incoming switchgear is used to receive power supply; outgoing switchgear distributes electricity to various electrical equipment or branches; metering switchgear is mainly used for electricity metering; capacitor compensation switchgear is used to improve the power factor of the power system and reduce reactive power loss.

Classified by structural form: There are fixed panel switchgear, drawer-type switchgear, and combination switchgear, etc. Fixed panel switchgear has a simple structure and a relatively low Price, suitable for places with low space requirements and infrequent operation; drawer-type switchgear has higher safety and flexibility, with electrical components installed in drawers for easy maintenance and replacement, suitable for places with high power supply reliability requirements; combination switchgear combines various functional units and can be flexibly configured according to actual needs.

Components

Switching devices: Such as circuit breakers, isolators, load switches, contactors, etc., used to connect and disconnect circuits and control the distribution of electricity and the operation of equipment.

Protective devices: Including fuses, thermal relays, overcurrent relays, undervoltage relays, etc., automatically cut off the circuit when the circuit experiences overload, short circuit, undervoltage and other faults to protect equipment and lines.

Measuring instruments: Such as voltmeters, ammeters, wattmeters, electricity meters, etc., used to measure various electrical parameters in the circuit to monitor the operating status of the power system.

Busbars: Used to connect various electrical components, collect and distribute electricity, usually made of rectangular or circular copper or aluminum conductors.

Cables and wires: Used to transmit electricity, connecting the switchgear to the power supply, electrical equipment, etc.

Cabinet: Serves as the outer shell of the switchgear, protecting internal electrical components, isolating live parts, preventing interference from external factors, etc. It is usually made of metal material with good mechanical strength and protective performance.

Installation and Maintenance

Installation: The switchgear should be installed in a dry, well-ventilated place free of corrosive gases and dust. The installation location should be convenient for operation and maintenance. During installation, ensure that the cabinet is well grounded, the installation of various electrical components is firm and reliable, and the Specification and laying method of the connecting wires meet the requirements.

Maintenance: Regularly clean the switchgear to remove dust and debris; check whether the connection of each electrical component is loose, whether there are any abnormal phenomena such as heating or sparking; check whether the switch operation is flexible, and whether the setting value of the protection device is correct; regularly check the insulation of busbars and cables to ensure that their insulation performance is good.

█ Production Capacity

Zibo Kaiyue Electric Co., Ltd., established in 2000, has a registered capital of 5,020,000. It is a high-tech enterprise focusing on the research, development, production, and sales of high and low-voltage power transmission and distribution and related complete sets of products. The company is located in Zibo City, Shandong Province, a national historical and cultural city. After more than 20 years of development, the company has become a backbone enterprise, a well-known Brand, and a member of the National High-voltage Switch Industry Association in the relevant industry.

Zibo Kaiyue Electric Co., Ltd. always adheres to the concept of customer-centric and market-oriented, forging ahead. In the production process and product quality, the company insists on independent research and development, cooperative introduction, and relies on high-tech talents and advanced domestic and foreign production equipment to continuously innovate and improve product production processes and quality, making the quality and craftsmanship of our products reach the advanced level of the domestic industry.

█ Production Capacity

The company implements scientific management and fully implements the ISO9001 international quality certification system, the 14000 certification quality management system certification and the CQC voluntary certification system. The company has rich design experience, high-quality procurement channels, meticulous production requirements, strict and careful inspection and control, and proactive After-sale Service, which has enabled the company to develop into an excellent supplier in the eyes of customers.

The company has successively won various honors such as Shandong Provincial High-tech Enterprise, Shandong Provincial Specialized and New Enterprise, Shandong Provincial Advanced Enterprise, Shandong Provincial Contract-Honoring and Promise-Keeping Enterprise, Shandong Provincial AAA Credit Enterprise, Shandong Provincial Energy-saving Industry Base, Zibo Municipal Advanced Unit in Quality Management, Zibo Municipal Gazelle Cultivation Enterprise, and Hantang County Integrity Enterprise.
